Stabilizer Inside
High Ambient Air-conditioning

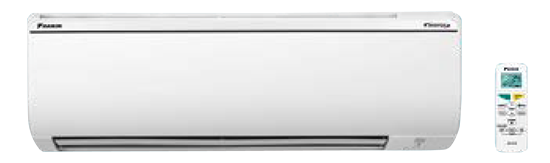

FTKM Series satisfies your cooling needs by offering a unique, total comfort experience for any lifestyle. New Coanda panel design creates a distinctive airflow pattern that assures cooling comfort for your home.
This function enables efficient operation by limiting the maximum power consumption. It is useful when using the air-conditioner and other electrical devices simultaneously on a shared electrical circuit.
Good sleep off timer offers automatic temperature increase to avoid excessive cooling. When Good sleep off operation starts, the set temperature will increase gradually by 2°C in the next 2 hours.
This feature ensures low noise level resulting in sound sleep. It optimises the speed of the airflow according to low noise level to give you uninterrupted comfort.
When the rooms needs to be cooled quickly in extreme heat, power chill ensures that the room temperature drops fast for immediate comfort.
This filter is made by titanium oxide. It adsorbs and decomposes bacteria. The filter can be used for up to 3 years with proper maintenance.
| Model name | Indoor unit | FTKM35TV16WC | FTKM50TV16VC FTKM50TV16VF | FTKM60TV16UC | ||
| Outdoor unit | RKM35TV16WC | RKM50TV16VC RKM50TV16VF | RKMG60TV16UC | |||
| Power supply | 1 50Hz 230V | 1 50Hz 230V | 1 50Hz 230V | |||
| (220-240V) | (220-240V) | (220-240V) | ||||
| Power supply intake | Outdoor unit | Outdoor unit | Outdoor unit | |||
| Cooling capacity Rated Full/Half (min.~max.) | kW | 3.52/1.76(1.75 ~4.0) | 5.0/2.5 (1.75~5.4) | 6.0/3.0 (2.5~6.7) | ||
| Cooling capacity Rated Full/Half (min.~max.) | Btu/h | 12000 / 6000 (6000~13600) | 17100 / 8550 (6000~18500) | 20500 / 10240 (8500~22900) | ||
| Power consumption Rated Full/Half (min.~max.) | W | 1010 / 330 (330~1010) | 1415 / 475 (375~1650) | 1665 / 580 (350~2100) | ||
| Annual Power consumption | kWh | 579.81 | 824.08 | 988 | ||
| ISEER / Star Rating | Wh/Wh | 4.70 / 5* | 4.70 / 5* | 4.70 / 5* | ||
| Voltage Range | V | 160-265 | 160-265 | 160-265 | ||
| Operating current | Cooling | A | 4.67 | 6.27 | 7.4 | |
| Indoor unit | ||||||
|---|---|---|---|---|---|---|
| Panel colour | White | White | White | |||
| Dimensions HxWxD | mm | 298 x 800 x 229 | 298 x 885 x 229 | 298 x 885 x 229 | ||
| (Package dimensions) | 375 x 895 x 325 | 375 x 980 x 325 | 375 x 980 x 325 | |||
| Weight (Gross) | kg | 10 (14) | 11 (16) | 11 (16) | ||
| Airflow rate *1 X(Y) | m3/min. | 13.4(11.9) | 16.2(14.3) | 16.6(15.4) | ||
| Feet3/min (CFM) | 473(420) | 544(505) | 576(544) | |||
| Operation sound H/M/ML/L/SL | Cooling | dBA | 40/36/32/29/26 | 45/42/40/38/35 | 47/45/43/40/38 | |
| Outdoor unit | ||||||
| Dimensions (H x W x D) | mm | 550 x 765 x 285 | 595 x 845 x 300 | 595 x 845 x 300 | ||
| (Package dimensions) | mm | 642 x 932 x 380 | 680 x 1035 x 410 | 680 x 1035 x 410 | ||
| Weight (Gross) | kg | 32(38) | 31 (38) / 32 (39) | 33 (40) | ||
| Operation sound (H) | Cooling | dBA | 51 | 54 | 56 | |
| Refrigerant (Amount) | R32 (0.56kg) | R32 (0.85 kg) | R32 (1.00kg) | |||
| Breaker size | A | 15 | 20 | 20 | ||
| Piping length | Charge-less | m | 10 | 10 | 10 | |
| Max. length | m | 20 | 30 | 30 | ||
| Max. height | m | 15 | 20 | 20 | ||
| Piping connection | Gas/Liquid | mm | 9.5 / 6.4 | 12.7 / 6.4 | 12.7 / 6.4 | |
| Operation limit | Cooling | oCDB | 19.4~52 | 19.4~52 | 19.4~52 | |
Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.
* X(Y) X-Air flow rate during fan operation.
Y-Air flow rate in wet (cooling) condition.
